• Product
SIDING

AVAILABLE PROFILE

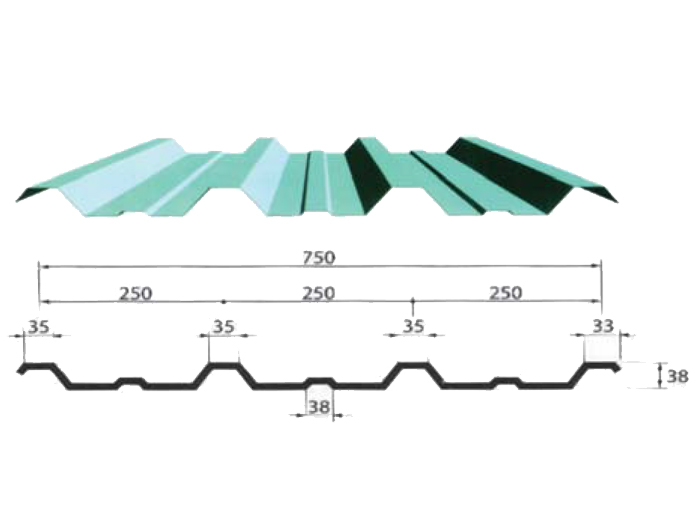

MSC 750B

PROPERTIES OF SECTION
Thicknes Weight Moment of Inrtia Section Modulus
mm Kg/m Kg/m² cm⁴/m(lx) cm³/m(Zx)
0.4 3.90 4.12 11.38 4.73
0.5 3.87 5.16 13.68 5.68
0.6 4.58 6.11 16.38 6.82
0.8 6.02 8.03 21.84 9.09

MAXIMUN DISTANCE OF SPAN AND ROOF SLOPE
Roof Overhang Minimum
End Span Internal Span Roof Slope
1400 MM. 2000 MM. 300 MM. 1.50
3°

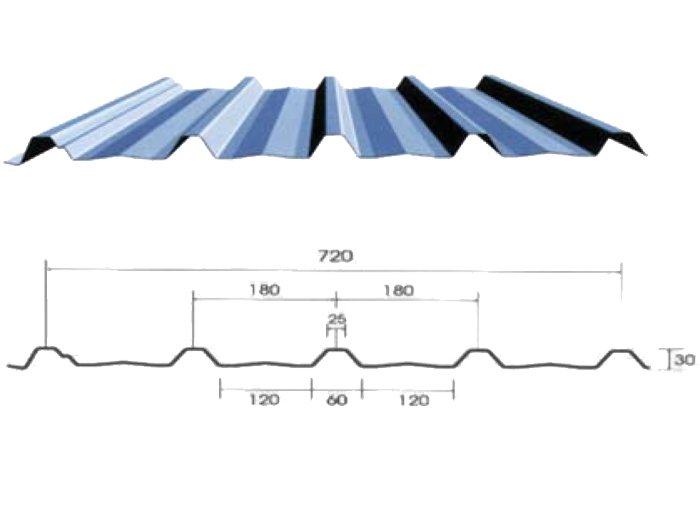

MSC 720B

PROPERTIES OF SECTION
Thicknes Weight Moment of Inrtia Section Modulus
mm Kg/m Kg/m² cm⁴/m(lx) cm³/m(Zx)
0.4 3.09 4.32 10.71 5.21
0.5 3.87 5.40 12.32 6.75
0.6 4.58 6.39 13.70 8.97

MAXIMUN DISTANCE OF SPAN AND ROOF SLOPE
Roof Overhang Minimum
End Span Internal Span Roof Slope
1400 MM. 2000 MM. 300 MM. 1.50
3°

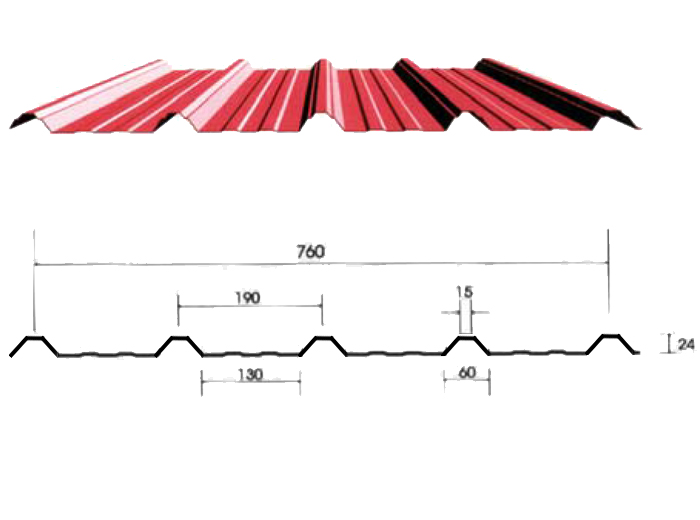

MSC 760B

PROPERTIES OF SECTION
Thicknes Weight Moment of Inrtia Section Modulus
mm Kg/m Kg/m² cm⁴/m(lx) cm³/m(Zx)
0.4 3.09 4.12 9.58 4.67
0.5 3.87 5.16 11.97 5.84
0.6 4.58 6.11 14.36 7.01

MAXIMUN DISTANCE OF SPAN AND ROOF SLOPE
Roof Overhang Minimum
End Span Internal Span Roof Slope
1400 MM. 2000 MM. 300 MM. 1.50
3°
