MSC CEE & ZED
ขนาด PLATE สำหรับ แปตัว Z
SECTION SIZE |
DIMENSION (mm.) |
|||||
X |
B |
Y |
T |
Gap |
DH |
|
| 150 | 60 | 55 | 145 | 6 | 10 | 18 |
| 200 | 110 | 55 | 195 | 6 | 10 | 18 |
| 250 | 160 | 55 | 245 | 6 | 10 | 18 |

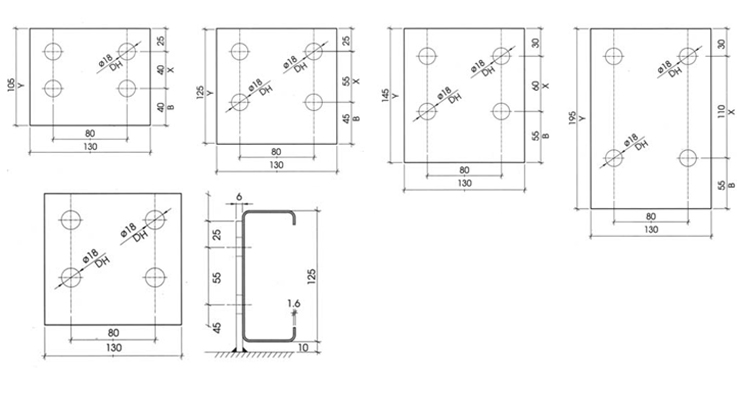

รูปแสดงการติดตั้ง PLATE กับ PURLIN
ขนาด PLATE สำหรับ แปตัว C
SECTION SIZE |
DIMENSION (mm.) |
|||||
X |
B |
Y |
T |
Gap |
DH |
|
| 150 | 40 | 40 | 105 | 6 | 10 | 18 |
| 125 | 55 | 45 | 125 | 6 | 10 | 18 |
| 150 | 60 | 55 | 145 | 6 | 10 | 18 |
| 200 | 110 | 55 | 195 | 6 | 10 | 18 |
Fastening to Cleats
To minimise the tendency of Zeds and Cees to rotate, when used as purlins, it is necessary to have the top flange pointing up to the slope. Purlins orientation may be a consideration in certain projects.

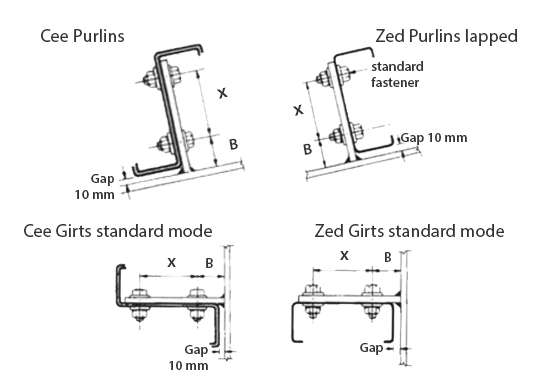

Typical arrangement of in-line Cee & Zed Purlins

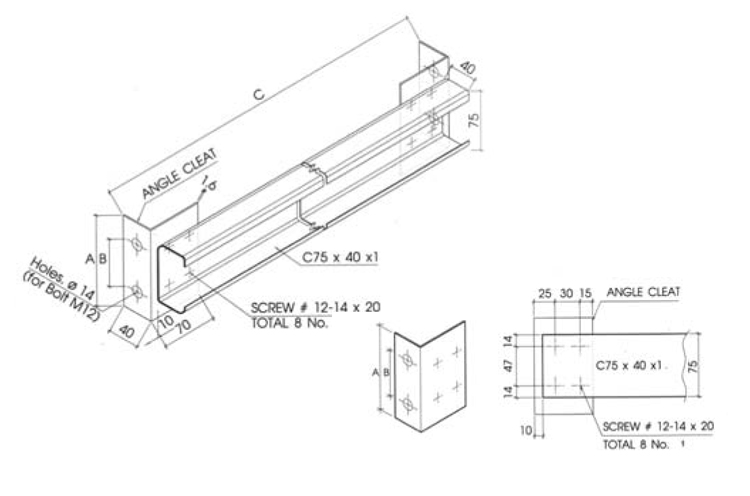

รูปแสดงรายละเอียด ANGLE CLEAT
ตารางขนาด ANGLE CLEAT
SECTION SIZE |
DIMENSION (mm.) |
|||||
A |
B |
T |
C |
|||
| 150 | 115 | 60 | 1.6 | PURLIN SPACING LESS THAN 2m. | ||
| 200 | 160 | 110 | 1.6 | |||
| 250 | 210 | 160 | 1.6 | |||

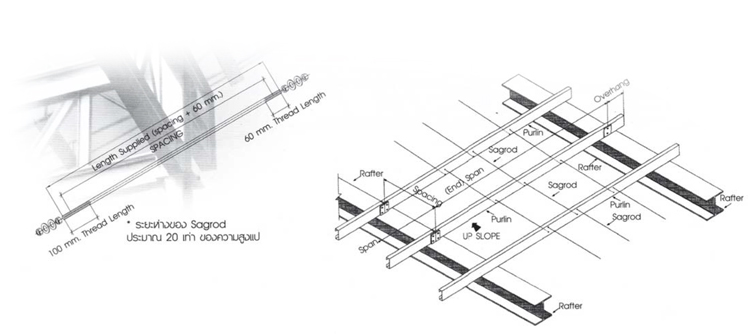

ระบบ SAGROD สำหรับ SPAN 4-5 M.
Yield Strength 240 MPa ø 12 mm.
GALVANIZED™
Typical Sagrod Arrangement of in-line CEE 7 ZED Purlins for Z/C 100,125,150,200,250 sections
การเปรียบเทียบ แม่เหล็กกล้า C และ Z ของ MSC กับแม่เหล็กทั่วไป สำหรับช่วง Span ตั้งแต่ 4 ถึง 10 เมตร |
Purlin Span |
Local Purlin Span Normal Mild Steel Purlin |
MSC Purlin" High Tendile Galvanized Purlin |
||
Size/Weight |
Purlin |
Size/Weight |
Purlin |
|
| 4.00 | C 100 x 50 x 20 x 3.2 @ 5.5 kg/m. with 1 No. Sagrod row |
3.78 | C 100 x 1.5 mm. @ 2.51 kg/m. with 1 No. Sagrod Row |
1.72 |
| 5.00 | C 125 x 50 x 20 x 3.2 @ with 1 No. Sagrod row |
4.21 | C 100 x 1.5 mm. @ 2.81 kg/m. with 1 No. Sagrod Row |
1.93 |
| 6.00 | C 125 x 50 x 20 x 3.2 @ 6.76 kg/m. with 1 No. Sagrod row |
4.64 | C.Z 150 x 1.5 mm. @ 3.51 kg/m. with 1 No. Sagrod Row |
2.40 |
| 7.00 | C 150 x 65 x 20 x 4.0 @ 9.22 kg/m. with 1 No. Sagrod row |
6.33 | C.Z 150 x 1.9 mm. @ 4.45 kg/m. with 1 No. Sagrod Row |
3.05 |
| 8.00 | C 150 x 75 x 20 x 4.0 @ 9.85 kg/m. with 1 No. Sagrod row |
6.76 | C.Z 200 x 1.5 mm. @ 4.42 kg/m. with 1 No. Sagrod Row |
3.03 |
| 9.00 | C 200 x 75 x 20 x 4.0 @ 11.4 kg/m. with 1 No. Sagrod row |
7.83 | C.Z 200 x 1.9 mm. @ 5.59 kg/m. with 1 No. Sagrod Row |
3.83 |
| 10.00 | C 200 x 75 x 25 x 4.5 @ 13.1 kg/m. with 1 No. Sagrod row |
9.00 | Z 250 x 1.9 mm. @ 6.63 kg/m. with 1 No. Sagrod Row |
4.42 |
