ROOFING

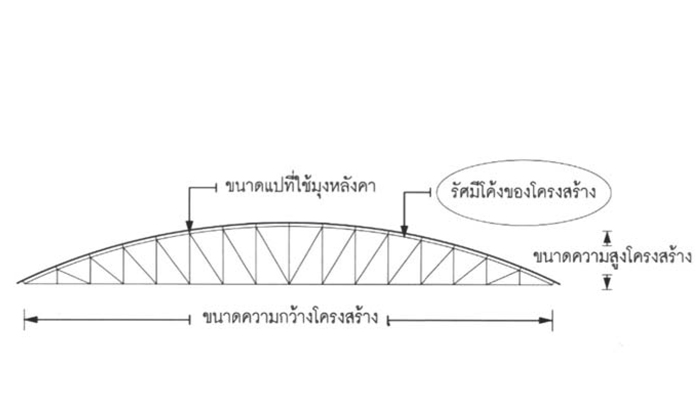

RADIAL ROOF

RADIAL ROOF

Type Minimum Radial
MSC 650BL 1000 m.m.
MSC 750BL 500 m.m.
MSC 700KL 1000 m.m.
MSC 600B 800 m.m.
MSC 750B 250 m.m.
MSC 720B 250 m.m.
MSC 760B 250 m.m.

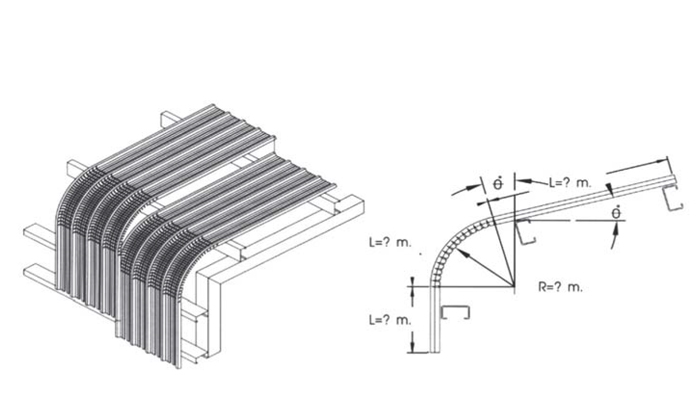

SPANK CURVED

SPANK CURVED

Type Minimum Radial
MSC 650BL 400 m.m.
MSC 750BL 150 m.m.
MSC 700KL 100 m.m.
MSC 600B 150 m.m.
MSC 750B 50 m.m.
MSC 720B 40 m.m.
MSC 760B 40 m.m.

AVAILABLE PROFILE

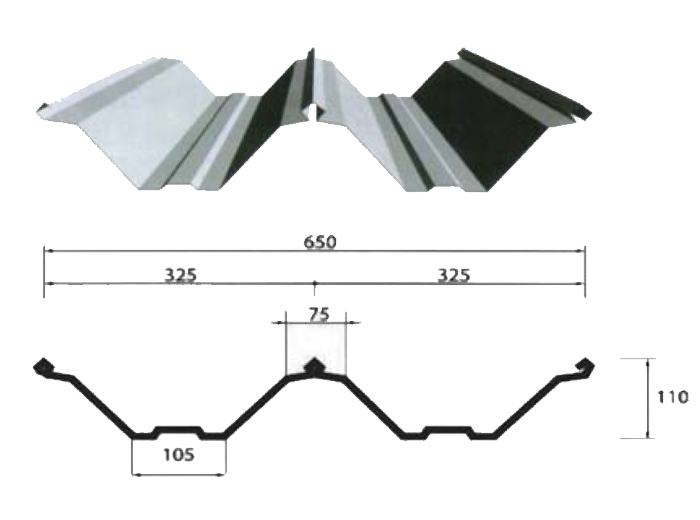

MSC 650BL

PROPERTIES OF SECTION
Thicknes Weight Moment of Inrtia Section Modulus
mm Kg/m Kg/m² cm⁴/m(lx) cm³/m(Zx)
0.4 - - - -
0.5 3.87 5.95 93.17 18.79
0.6 4.58 7.05 111.80 23.55
0.8 6.02 9.26 149.07 30.07

MAXIMUN DISTANCE OF SPAN AND ROOF SLOPE
Roof Overhang Minimum
End Span Internal Span Roof Slope
1400 MM. 2000 MM. 300 MM. 1.50
1°

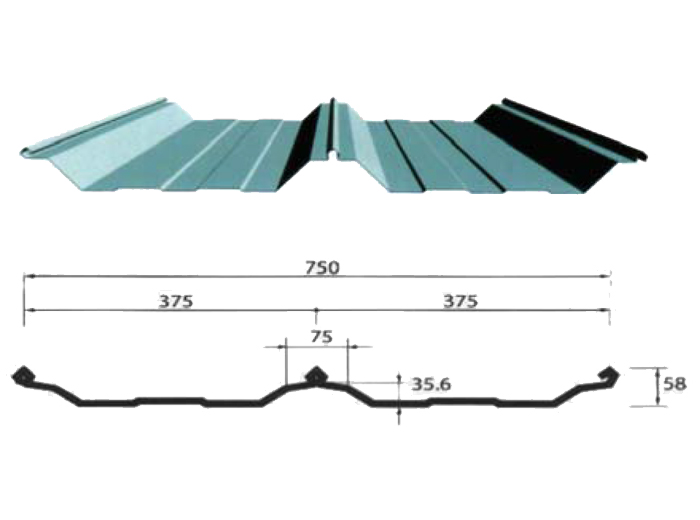

MSC 750BL

PROPERTIES OF SECTION
Thicknes Weight Moment of Inrtia Section Modulus
mm Kg/m Kg/m² cm⁴/m(lx) cm³/m(Zx)
0.4 3.09 4.12 16.49 3.95
0.5 3.87 5.16 20.16 4.94
0.6 4.58 6.11 24.73 5.93
0.8 6.02 8.03 32.98 7.90

MAXIMUN DISTANCE OF SPAN AND ROOF SLOPE
Roof Overhang Minimum
End Span Internal Span Roof Slope
1400 MM. 2000 MM. 300 MM. 1.50
2°

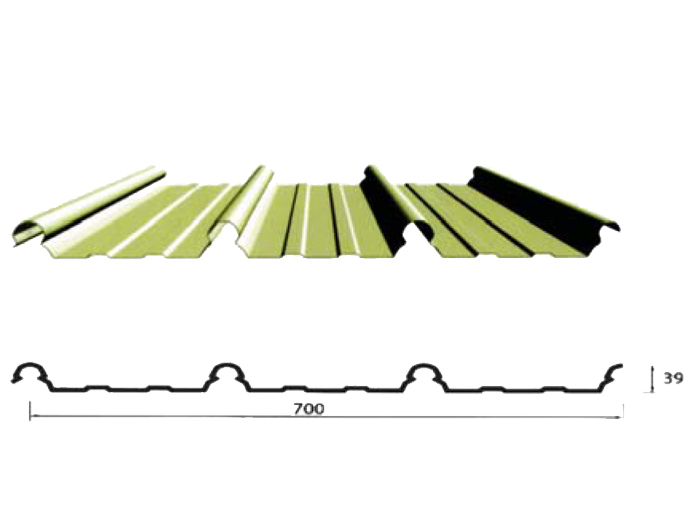

MSC 700KL

PROPERTIES OF SECTION
Thicknes Weight Moment of Inrtia Section Modulus
mm Kg/m Kg/m² cm⁴/m(lx) cm³/m(Zx)
0.4 3.09 4.41 9.93 3.46
0.5 3.87 5.52 11.17 3.90
0.6 4.58 6.54 14.92 5.19

MAXIMUN DISTANCE OF SPAN AND ROOF SLOPE
Roof Overhang Minimum
End Span Internal Span Roof Slope
1400 MM. 2000 MM. 300 MM. 1.50
3°

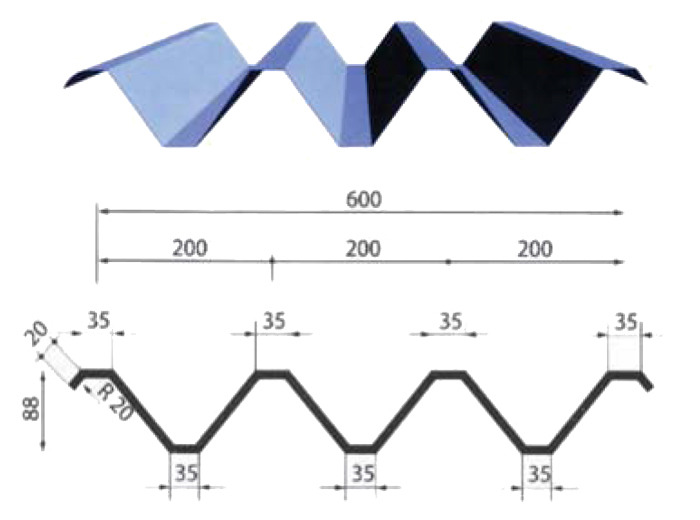

MSC 600B

PROPERTIES OF SECTION
Thicknes Weight Moment of Inrtia Section Modulus
mm Kg/m Kg/m² cm⁴/m(lx) cm³/m(Zx)
0.5 3.87 6.45 60.8 13.0
0.6 4.58 7.63 75.7 16.2
0.8 6.02 10.03 105.0 24.5
1.0 7.45 12.43 134.0 28.8

MAXIMUN DISTANCE OF SPAN AND ROOF SLOPE
Roof Overhang Minimum
End Span Internal Span Roof Slope
1400 MM. 2000 MM. 300 MM. 1.50
3°

MSC 750B

PROPERTIES OF SECTION
Thicknes Weight Moment of Inrtia Section Modulus
mm Kg/m Kg/m² cm⁴/m(lx) cm³/m(Zx)
0.4 3.90 4.12 11.38 4.73
0.5 3.87 5.16 13.68 5.68
0.6 4.58 6.11 16.38 6.82
0.8 6.02 8.03 21.84 9.09

MAXIMUN DISTANCE OF SPAN AND ROOF SLOPE
Roof Overhang Minimum
End Span Internal Span Roof Slope
1400 MM. 2000 MM. 300 MM. 1.50
3°

MSC 720B

PROPERTIES OF SECTION
Thicknes Weight Moment of Inrtia Section Modulus
mm Kg/m Kg/m² cm⁴/m(lx) cm³/m(Zx)
0.4 3.09 4.32 10.71 5.21
0.5 3.87 5.40 12.32 6.75
0.6 4.58 6.39 13.70 8.97

MAXIMUN DISTANCE OF SPAN AND ROOF SLOPE
Roof Overhang Minimum
End Span Internal Span Roof Slope
1400 MM. 2000 MM. 300 MM. 1.50
3°

MSC 760B

PROPERTIES OF SECTION
Thicknes Weight Moment of Inrtia Section Modulus
mm Kg/m Kg/m² cm⁴/m(lx) cm³/m(Zx)
0.4 3.09 4.12 9.58 4.67
0.5 3.87 5.16 11.97 5.84
0.6 4.58 6.11 14.36 7.01

MAXIMUN DISTANCE OF SPAN AND ROOF SLOPE
Roof Overhang Minimum
End Span Internal Span Roof Slope
1400 MM. 2000 MM. 300 MM. 1.50
3°
